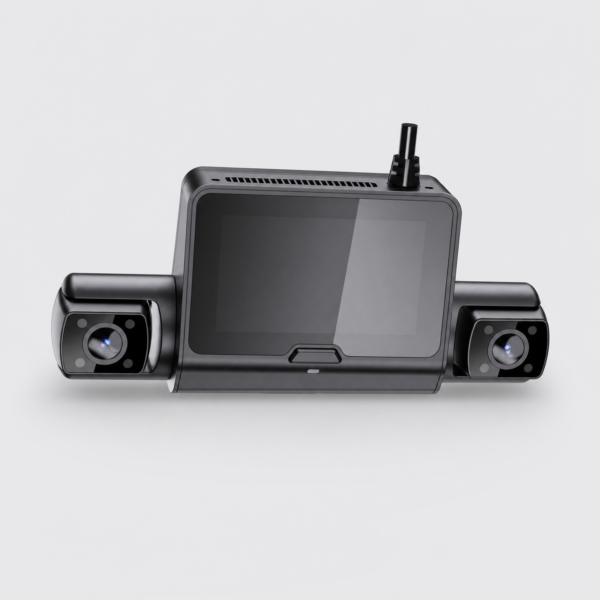

Connected Multi-Channel Fleet Dash Camera Platform
Designed for fleet operators, transport projects and commercial-vehicle integrators, this 4G dash camera combines local multi-view recording with remote monitoring in one vehicle-mounted device. It is suitable for vans, trucks, ride-hailing fleets, logistics vehicles and other commercial deployments that require driving evidence, cabin visibility, remote checking and parking-event protection.
The four-channel architecture covers front road, in-cabin, right-side AHD and rear AHD views. External camera kits and regional communication modules can be selected according to the target vehicle type, deployment market and fleet platform requirements.
4K Sony IMX415 Front Camera
The road-facing camera uses an 8-megapixel Sony IMX415 sensor with 3840 × 2160 resolution. It supports a 4K H.265 main stream at 25 fps and a 1280 × 720 H.264 sub-stream at 25 fps.
Four-Channel Recording Architecture
The in-cabin camera uses an SC235HAI sensor and records 1080P video at 15 fps. The AHD external-camera channels support 1080P vehicle views, including a right-side channel at 15 fps and a rear channel at 25 fps. This gives integrators a practical platform for front-road recording, cabin monitoring, side-view evidence and rear-view coverage.
Built-In Display and Touch Operation
Unlike screen-free fleet boxes, this product includes a built-in display and touch interface. The 376 × 960 display can show camera preview modes for local operation, installation checks and driver-side viewing. This is especially useful during installation because camera angle, signal status and basic preview can be checked directly on the device.
LTE Cat 4 Remote Fleet Monitoring
The 4G module platform supports LTE Cat 4 communication, remote live view, screenshots, quick capture, locked video, cloud album access, cloud playback, device settings and device control. Supported module options cover different regional band requirements, so the communication module should be selected according to the target market, SIM plan and fleet platform.
Optional GNSS Vehicle Positioning
GNSS-capable communication modules support GPS, GLONASS and BeiDou positioning, with positioning accuracy below 2 m CEP50. Location, route history, one-click vehicle search and parking-track features support fleet visibility when the selected module includes GNSS.
2.4 GHz WiFi 6 Local Access
The AIC8800DL wireless platform supports 802.11 b/g/n/ax on the 2.4 GHz band, with a rate up to 287 Mbps. Installers and drivers can connect locally through the device hotspot for supported preview and device operation.
Parking Monitoring and Low-Power Modes
When ACC is off, supported low-power modes include time-lapse recording, remote wake-up, remote preview, vibration-triggered capture and anti-theft monitoring. Time-lapse mode current is below 200 mA at 12.5 V, and anti-theft mode current is below 15 mA at 12.5 V. Anti-theft sensitivity and collision sensitivity can be adjusted from off to low, medium or high.
TF-Card Recording and Event Protection
The device supports microSD / TF cards with maximum support up to 512 GB. Videos are saved in MP4 format with H.264 / H.265 encoding, and supported event functions include screenshots, video locking, quick capture and collision-event protection.
Remote Maintenance and Project Settings
The platform supports QR-code or IMEI binding, remote restart, device self-test, OTA update, configurable overspeed alerts, microphone and volume settings, device voice prompts and customizable voice-prompt language for project deployments.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Built-in-display 4G multi-channel fleet dash camera |
| Recording Configuration | Front, in-cabin, right-side/AHD and rear-camera configurations supported |
| Processor | AX630C, dual-core Cortex-A53, up to 1.2 GHz |
| Front Camera Sensor | Sony IMX415, 8 MP |
| Front Camera Resolution | 3840 × 2160 |
| Front Main Stream | 4K H.265 at 25 fps |
| Front Sub-Stream | 1280 × 720 H.264 at 25 fps |
| Interior Camera Sensor | SC235HAI |
| Interior Camera Resolution | 1920 × 1080 |
| Interior Main Stream | 1080P H.265 at 15 fps |
| Interior Sub-Stream | 1280 × 720 H.264 at 15 fps |
| AHD Right Camera | FH8536H + GC2053, 1080P |
| AHD Right Main Stream | 1080P H.265 at 15 fps |
| AHD Right Sub-Stream | 1280 × 720 H.264 at 15 fps |
| AHD2 Rear Camera | FH8536H + GC2053, 1080P |
| AHD2 Rear Main Stream | 1080P H.265 at 25 fps |
| AHD2 Rear Sub-Stream | 1280 × 720 H.264 at 25 fps |
| Display | Built-in display, 376 × 960 resolution |
| Touch | CST226SE touch driver |
| 4G | LTE Cat 4; regional module and band configuration |
| GNSS | Optional GPS / GLONASS / BeiDou module; positioning accuracy <2 m CEP50 |
| WiFi | 2.4 GHz WiFi 6, 802.11 b/g/n/ax, up to 287 Mbps |
| Storage | microSD / TF card, maximum support up to 512 GB |
| SIM | Push-push Nano SIM; eSIM-compatible design position |
| Video Format | MP4 |
| Video Encoding | H.264 / H.265 |
| USB | Type-C for debugging, download and serial information |
| Speaker | 1 W / 8 Ω supported |
| Microphone | 40 ± 2 dB sensitivity |
| Power | 12.5 V / 24.5 V; extreme input range 8–30 V |
| Time-Lapse Power | <200 mA at 12.5 V |
| Anti-Theft Mode Power | <15 mA at 12.5 V |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -30°C to +75°C |
| Operating Humidity | ≤80% RH |
| Remote Functions | Live view, playback, cloud access, location, routes, settings, restart, self-test and OTA |
| Customization | OEM/ODM and private-label customization supported |
OEM/ODM Manufacturing Support
OEM/ODM cooperation and private-label customization are available for international distributors, fleet integrators, brands and project customers. Camera configuration, communication module, GNSS option, antenna configuration, product appearance, logo, packaging and voice prompts can be developed according to customer project requirements.
