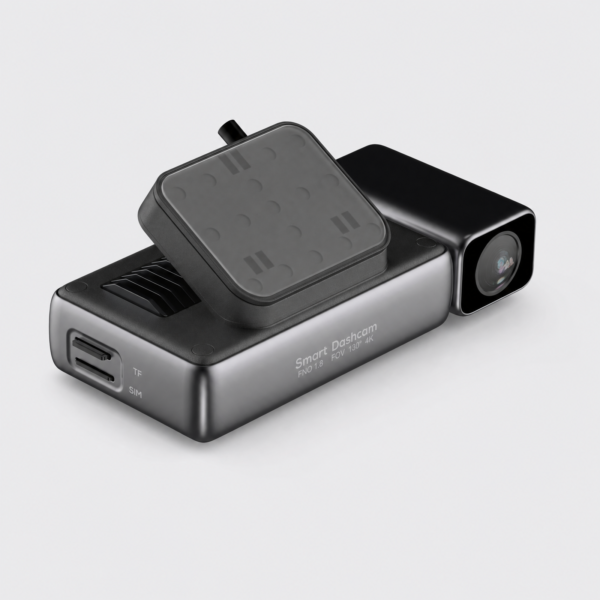

Upgraded 4G 4K Fleet Dash Camera Platform
Designed for fleet, logistics and commercial-vehicle projects, this compact screen-free dash camera combines high-resolution recording, connected monitoring and low-power parking functions. The upgraded AX630C processing platform supports a 4K front channel, a 1080P rear channel and project-specific third-camera expansion.
8MP Sony IMX415 4K Front Camera
The front camera uses an 8-megapixel Sony IMX415 image sensor with 3840 × 2160 resolution. It records a 4K H.265 main stream at 25 fps and provides a 960 × 540 sub-stream for connected preview.
Front and Rear Recording
The standard dual-channel configuration records the 4K front view and a 1080P rear view simultaneously. The rear AHD camera records at 25 fps and can be mirrored for appropriate installation. A rear camera connection cable is included.
Optional Third-Camera Expansion
A reserved AHD2 camera interface allows a third 1080P camera to be added for projects requiring an additional vehicle view. The optional third channel must be confirmed as part of the selected product configuration.
LTE Cat 4 Remote Monitoring
Use the mobile app for remote live view, screenshots, locked video, playback, cloud album access, cloud playback and device control. LTE Cat 4 communication supports regional module configurations for international and domestic deployments.
Optional GNSS Vehicle Visibility
GNSS-capable communication-module options support GPS, GLONASS and BeiDou. The supplied specification states positioning accuracy below 2 m CEP50. Vehicle location, route history and one-click vehicle search provide practical fleet visibility.
2.4 GHz WiFi 6 App Access
The AIC8800DL wireless platform supports 802.11 b/g/n/ax on the 2.4 GHz band, with a stated rate up to 287 Mbps. Drivers and installers can connect locally for device access, preview and supported settings.
Parking Monitoring and Low-Power Modes
When ACC is switched off, supported sleep/AOV and low-power modes provide remote wake-up, preview, vibration-triggered capture and time-lapse recording. Anti-theft sensitivity and collision sensitivity can be set to off, low, medium or high.
TF-Card Recording and Event Protection
The device supports TF cards with a maximum capacity of 512 GB. Recordings use MP4 with H.264/H.265 encoding. Screenshots, video locking and collision-event protection help preserve important footage.
Remote Maintenance and Fleet Settings
The platform supports OTA updating, remote restart, remote self-test, configurable overspeed alerts and voice status prompts. QR-code or IMEI binding supports project deployment and device management.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Screen-free 4G fleet dash camera |
| Standard Recording | 2 channels: 4K front + 1080P rear |
| Optional Expansion | Reserved AHD2 interface; up to 3 channels |
| Processor | AX630C, dual-core Cortex-A53, up to 1.2 GHz |
| Front Camera Sensor | Sony IMX415, 8 MP |
| Front Camera Resolution | 3840 × 2160 |
| Front Main Stream | 4K H.265 at 25 fps |
| Front Sub-Stream | 960 × 540 H.264 at 25 fps |
| Rear Camera | FH8536H + GC2053, 1080P |
| Rear Main Stream | 1080P H.264 at 25 fps |
| Rear Sub-Stream | 960 × 540 H.264 at 25 fps |
| Optional AHD2 Camera | 1080P at 25 fps; selected configuration required |
| Display | None; app-based preview and control |
| 4G | LTE Cat 4; regional band/module configuration |
| GNSS | Optional GPS / GLONASS / BeiDou module; stated accuracy <2 m CEP50 |
| WiFi | 2.4 GHz WiFi 6, 802.11 b/g/n/ax, stated up to 287 Mbps |
| Storage | TF card, maximum support up to 512 GB |
| SIM | Nano SIM; eSIM-compatible design |
| Video Format | MP4 |
| Video Encoding | H.264 / H.265 |
| Power | 12.5 V / 24.5 V; extreme input range 8–30 V |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -30°C to +75°C |
| Operating Humidity | ≤80% RH |
| Rear Camera Connection Cable | Included with rear-camera configuration |
| Remote Functions | Live view, playback, cloud access, location, routes, settings, restart and OTA |
| Customization | OEM/ODM and private-label customization supported |
OEM/ODM Manufacturing Support
OEM/ODM cooperation and private-label customization are available for international distributors, brands, fleet integrators and project customers. Camera configuration, communication module, GNSS option, antenna configuration, product appearance, logo and packaging can be developed according to confirmed project requirements.
